Magnetic Drive Seal-less Pump
AMX Series

AMX is a series of general-purpose, chemical-resistant pumps made of corrosion-resistant materials. This series is designed to cover medium-duty chemical applications for a broad range of industries. The AMX-Series corrosion resistant pumps are of magnetic drive, seal-less construction. Besides being leak-free, we have additional safety features to prevent accidental exposure of potentially dangerous chemicals to the environment and pump operators over long-term use.

Magnetic Drive Seal-less Pump AMX Series
Magnetic Drive Seal-less Pump
Features
  • General-purpose, full plastic chemical corrosion resistant pump.
  • No-leakage pump design.
  • Designed to withstand abnormal operations.
  • High-efficiency pump design.
  • Built for use in corrosive environments.
  • Minimal pump maintenance.
Specification
  • Pump Capacity: Up to 80 m3/h (1,350 lpm or 352 GPM)
  • Pump Head: Up to 45 m (147 ft)
  • Power Range: 0.37 kW - 7.5 kW (½ - 10 hp)
  • Casing Material: GFRPP, CFRETFE
  • Type: Horizontal, Single Stage, Centrifugal
  • Construction: Magnetic Drive, Sealless

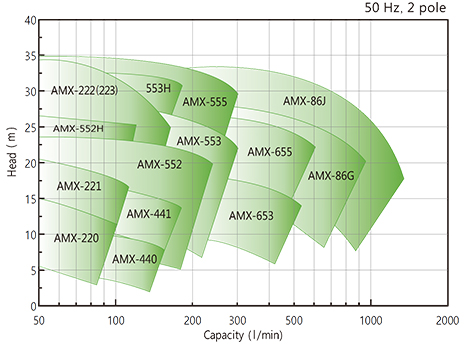

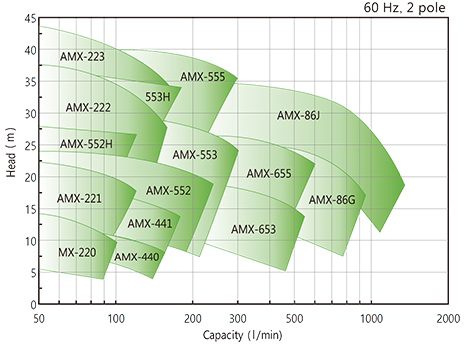

AMX-Series Family of pumps
AMX-Series Family of pumps
AMX-Series Family of pumps
Model AMX-220 AMX-440 AMX-221 AMX-441 AMX-222 AMX-223 AMX-552* AMX-552H* AMX-553* AMX-553H* AMX-555* AMX-653 AMX-655 AMX-86G AMX-86J
Suction x Discharge(mm) 25 x 25 40 x 40 25 x 25 40 x 40 25 x 25 25 x 25 50 x 50 50 x 50 50 x 50 50 x 50 50 x 50 65 x 50 65 x 50 80 x 65 80 x 65
50 Hz Rated Capacity (l/min) 80 100 80 150 80 80 200 100 250 150 250 450 500 800 800
Rated Head (m) 10.6 9.9 19.2 15.0 33.2 33.2 21.1 25.8 24.1 31.7 31.4 15.7 23.9 22.7 29.0
60 Hz Rated Capacity (l/min) 80 100 80 150 80 80 200 100 250 150 250 450 500 800 800
Rated Head (m) 11.8 10.3 21.1 15.4 34.5 41.7 20.3 27.2 25.9 34.8 37.4 15.9 23.9 20.4 30.5
Motor Output (kW) 0.37 0.37 0.75 0.75 1.5 2.2 1.5 1.5 2.2 2.2 3.75 2.2 3.75 5.5 7.5
Note: These models are also available in 50 x 40 flange configurations (e.g. AMX-542).
