Superior Efficiency Canned Motor Chemical Pump
AVF-C Series

The AVF-C series of pumps is the first of its kind of plastic canned motor centrifugal pump that achieved the highest pump efficiency rating of MEI > 0.7 according to Commission Regulation (EU) No 547/2012 of 25 June 2012. These canned pumps are designed to handle a broad range of aggressive chemicals and can be used in highly demanding areas such as corrosive environments and clean rooms.

AVF-C Series Canned Pump from ASSOMA® Canned Motor Pump Manufacturers AVF-C Series
AVF-C Series Canned Pump from ASSOMA® Canned Motor Pump Manufacturers
Features
  • Minimal energy use with highest efficiency hydraulic design.
  • Fully corrosion-resistant exterior, suitable for corrosive and saline environments.
  • Fully enclosed, leak-free construction
  • IE5 efficiency motor, realizing maximum energy-saving potential.
  • Quiet operation, suitable for cleanroom applications.
  • Small and light, facilitating easy installation and operation.
  • Smallest installation footprint, maximizing space utilization.
  • Minimal maintenance needs*.
  • Maximum stability and reliability*.

    • * Enhanced with our Pump Smart Monitor

Specification
  • Pump Capacity: Up to 51 m3/h (850 lpm or 225 GPM)
  • Pump Head: Up to 37 m (121 ft)
  • Power Range: 1.1 kW - 4.0 kW (1½ - 5½ hp)
  • Casing Material: GFRPP, CFRETFE
  • Type: Horizontal, Single Stage, Centrifugal
  • Construction: Canned Motor, Sealless

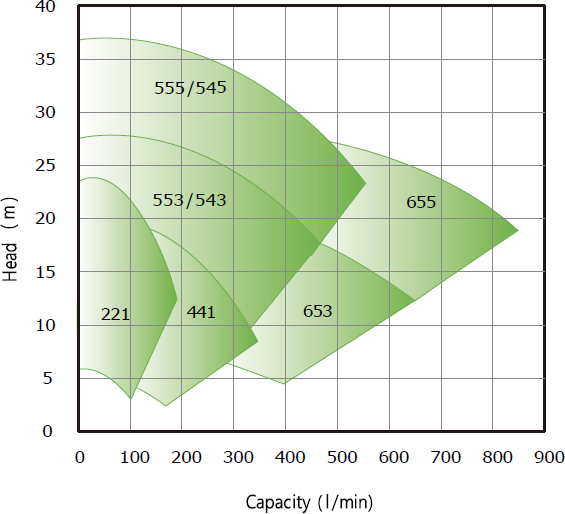

AVF-C Series Family of pumps
AVF-C Series Family of pumps
Model AVF-C221 AVF-C441 AVF-C543
AVF-C553		 AVF-C653 AVF-C545
AVF-C555		 AVF-C655
Suction x Discharge (mm) 25 x 25 40 x 40 50 x 40
50 x 50		 65 x 50 50 x 40
50 x 50		 65 x 50
Capacity Range (l/min) 10 - 180 20 - 300 40 - 500 60 - 600 60 - 550 80 - 850
Head Range (m) 6 - 23 5 - 20 8 - 31 4 - 22 8 - 37 7 - 30
Motor Output (kW) 1.1 1.1 2.2 2.2 4.0 4.0
